MS Angles
MS Angles

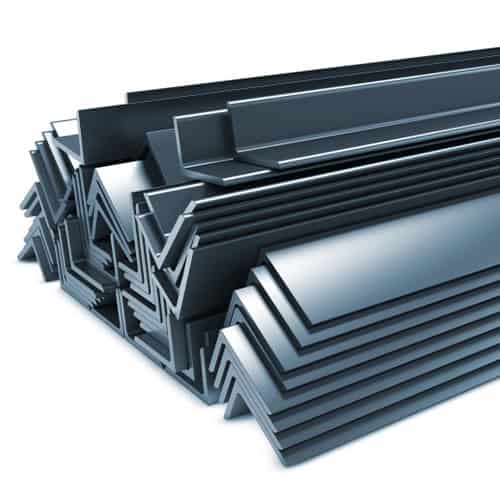

One of the most common structural components is the L-shaped section known as Angle. Two steel legs joined at a right angle produce an L-shape. Though the length of each section can vary, angled beams always make the right angle. Structural steel angles can be equal or unequal.
We supply steel angles with precise dimensional accuracy and our MS angles come with superior mechanical properties, and are extremely convenient to weld, drill and cut to suit the individual requirements of every construction. Being a popular MS angle supplier, our equal and unequal angles are highly versatile and can be used in a number of engineering applications such as reinforcement, transmission towers, bridges, sheds, etc. Their anti-corrosion property increases the life of the structures built by using them. We provide high material strength for exceptional support in work which makes it ideal for framing, bracing and structural support works. Our steel angles can withstand high loads and adhere to Indian Standards (IS:808 and IS:2062). We supply MS angles of various makes like SAIL, JSPL, RINL, Kamdhenu, Jai Bharat, etc. We are experienced in this domain, and with our expertise, we are offering a wide range of angles from sizes 15x15x3 up to 150x150x12.
| Sizes in mm | Weight in Kgs/Mtr | Weight in Kgs/Ft |
| 25 x 25 x 3 | 1.1 | 0.3 |
| 25 x 25 x 4.5 | 1.6 | 0.49 |
| 25 x 25 x 5 | 1.8 | 0.5 |
| 25 x 25 x 6 | 2.1 | 0.6 |
| 30 x 30 x 3 | 1.4 | 0.4 |
| 35 x 35 x 3 | 1.6 | 0.5 |
| 35 x 35 x 4 | 2.1 | 0.6 |
| 35 x 35 x 5 | 2.6 | 0.8 |
| 37 x 37 x 3 | 1.7 | 0.5 |
| 40 X 40 X 3 | 1.8 | 0.055 |
| 40 x 40 x 4 | 2.4 | 0.7 |
| 40 x 40 x 5 | 3 | 0.9 |
| 40 x 40 x 6 | 3.5 | 1.1 |
| 45 x 45 x 4 | 2.7 | 0.8 |
| 45 x 45 x 5 | 3.4 | 1 |
| 45 x 45 x 6 | 4 | 1.22 |
| 50 x 50 x 3 | 2.3 | 0.7 |
| 50 x 50 x 4 | 3 | 0.9 |
| 50 x 50 x 5 | 3.8 | 1.2 |
| 50 x 50 x 6 | 4.5 | 1.4 |
| 50 x 50 x 8 | 5.84 | 1.78 |
| 55 x 55 x 4 | 3.3 | 1 |
| 55 x 55 x 5 | 4.1 | 1.3 |
| 60 x 60 x 4 | 3.7 | 1.1 |
| 60 x 60 x 5 | 4.5 | 1.4 |
| 60 x 60 x 6 | 5.4 | 1.64 |
| 65 x 65 x 4 | 4 | 1.2 |
| 65 x 65 x 5 | 4.9 | 1.5 |
| 65 x 65 x 6 | 5.8 | 1.8 |
| 65 x 65 x 8 | 7.7 | 2.4 |
| 65 x 65 x 10 | 9.4 | 2.9 |
| 65 x 65 x 12 | 11.8 | 3.6 |
| 70 x 70 x 7 | 7.38 | 2.25 |
| 75 x 75 x 5 | 5.7 | 1.7 |
| 75 x 75 x 6 | 6.8 | 2.1 |
| 75 x 75 x 8 | 8.9 | 2.7 |
| 75 x 75 x 10 | 11 | 3.4 |
| 75 x 75 x 12 | 13.1 | 4 |
| 80 x 80 x 6 | 7.2 | 2.19 |
| 80 x 80 x 7 | 7.9 | 2.9 |
| 80 x 80 x 8 | 9.6 | 2.9 |
| 90 x 90 x 6 | 8.2 | 2.5 |
| 90 x 90 x 7 | 9.5 | 2.9 |
| 90 x 90 x 8 | 10.8 | 3.1 |
| 90 x 90 x 10 | 13.4 | 4.1 |
| 98 x 98 x 9.5 | 13.09 | 3.99 |
| 100 x 100 x 6 | 9.2 | 2.8 |
| 100 x 100 x7 | 10.7 | 3.3 |
| 100 x 100 x 8 | 12.1 | 3.7 |
| 100 x 100 x 10 | 14.9 | 4.5 |
| 100 x 100 x 12 | 17.7 | 5.4 |
| 110 x 110 x 8 | 13.4 | 4.08 |
| 110 x 110 x10 | 16.5 | 5.03 |
| 110 x 110 x 12 | 19.6 | 5.97 |
| 130 x 130 x 8 | 15.9 | 4.85 |
| 130 x 130 x 10 | 19.7 | 6.01 |
| 130 x 130 x 12 | 23.4 | 7.13 |
Available Brands: SAIL, TATA,JSPL, Kamdhenu, RINL, Jai Bharat
Material Sourcing
We supply products from top manufacturers including:
SAIL, JSPL, RINL, Kamdhenu, TATA, Jindal, APL Apollo, Surya, Jyoti TMT, Fortune TMT, and many more.
All materials are tested and certified as per BIS/IS/ASTM standards to meet project specifications.
