Earthing Plates
What are earthing plates? Let’s Get To Know Them
Earthing plates are made of copper, and they are galvanised for high corrosion resistance when installed vertically into the ground. They play a vital role in electricity safety, protecting people, equipment and structures by providing a safe path for faulty current. The earthing plates are mainly buried near substations, electrical panels, telecom towers and industrial plants. The earthing plates function as big conductors that offer a low-resistance pathway for electrical current to flow safely. Hi-Tech Engineers, as trusted earthing plates manufacturers in India, have been supplying premium earthing plates to various industries, ensuring safety in different environments.

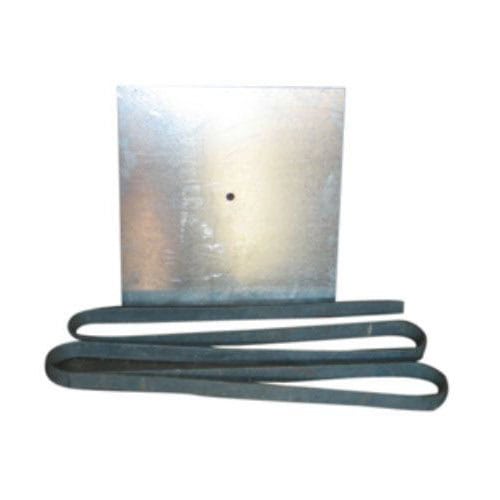

Fabricated from mild steel and hot-dip galvanized for stable and efficient grounding.
- Standard Size: 600mm x 600mm x 6mm / 10mm
High conductivity and corrosion resistance for all-weather performance
Types and applications of Lattice towers
Plates
This is the most vital part of the earthing plates; the size of it is determined by different factors like soil and the amount of currency. The plates are highly galvanised and made from a highly conductive material.
The electrode
This is the background network that facilitates the currency flow. In cases where the soil conditions are very poor, the backfill enhances the efficiency by lowering the resistance between the plate and the surrounding soil.
The conductor
This is usually a copper or aluminium wire which is attached to the plate, functioning as a bridge to carry any faulty current.
Advantages of earthing plates
Equipment protection: The earthing plates safeguard equipment from damage when there is a faulty current, hence preventing damage.
Fault current management: In order to avoid any high risk, the earthing plates safely direct faulty current into the ground with low resistance, eliminating the chances of a person getting electrocuted.
Reduced fire risk: Mismanaged electrical current can increase the chances of starting a fire, but this can be managed by installing the earthing plates.
Hi-Tech Engineers supply earthing plates of different sizes depending on customers’ preferences. Our plates are made from mild steel, and they go through hot-dip galvanisation to ensure high durability. The standard sizes that we offer are 600mm✕ , 600 mm ✕ , 6mm ✕, and 10mm. For many years, we have maintained a high standard in supplying premium earthing plates to various industries, which has made us the most trusted earthing plates manufacturer in Punjab. We have advanced facilities for manufacturing large-scale demands in different sizes. We have an expert team of engineers who have an in-depth understanding of earthing plates and are able to help clients guide them on how to ensure effective performance of the earthing plates.
Here is why you can trust Hi-Tech Engineers for earthing plate manufacturing
Access to precision engineering
Hi-Tech Engineers invest in advanced technology to achieve precision engineering. We are strict with our standard of premium quality, no matter the scale of supply, and we ensure to adhere to the standard regulatory standards for safety and effective functionality.
Certified manufacturing
You can be assured that our operations are certified by ISO 9001:2015, which guarantees our standard premium quality for all our earthing plates and all our products, making us the top-trusted earthing plates suppliers in Bathinda.
Skilled and experienced engineers
Our company has a team of experienced and skilled engineers who understand the process of manufacturing earthing plates and installation, so that clients can be provided with the best products and guided on how to install them for optimum functionality.
Availability of in-house facility
Get in touch with us as the best earthing plates manufacturers in Mandi Gobindgarh, as we have an in-house facility for all our manufacturing operations, ensuring prompt production, strict adherence to the standard and smooth operations.
FAQ's
Is there a standard length for installing earthing plates?
The earthing plates are required to be installed vertically and 3 meters deep into the soil.
What affects the functionality of earthing plates?
It is transported in a disassembled form, where the components are loaded on trucks for easy transportation.
What is the soil requirement when installing earthing plat
For optimum functionality of the earthing plates, there are requirements for the soil, such as that the soil must remain moist throughout the year. The ideal type of soil would be clay or loam, whilst avoiding sand, gravel and rocky terrain.
Where can I install the earthing plates?
Earthing plates can be installed in places near the substations, industrial areas, near high-voltage transformers and high-rise buildings.
How do I select the right size of the earthing plates?
You can choose the right size of earthing plate by balancing the soil resistivity and the safety standards. The standard minimum size is 600mm✕ 600 mm.
