Steel Sections
At Hi-Tech Engineers, we supply a comprehensive range of steel products, suitable for construction, fabrication, infrastructure, electrical, and industrial projects. Our stock includes top-quality materials from trusted brands like SAIL, JSPL, RINL, Jindal, Apollo, Jyoti TMT, TATA, Surya Pipes, Kamdhenu, and more.
Steel Sections
Steel sections are the foundation stone for any construction project and are considered as bread and butter of steel fabrication industry. They are extensively used for varied applications like road, buildings, bridges, etc. and are available in a very wide variety. Designers, architects and engineers choose different sections for their aesthetics and structural qualities – their choices determined by size, weight and profile. Steel is extremely versatile and can be molded to many different shapes.
We are counted as consistent firm actively involved in supplying of various steel sections like Angle, Channel, Flat Bar, Round Bar, Beam, MS Plates, Pipes, etc. The offered profiles are utilized widely in the construction industry and gained us huge acclamation for its strength and durability.

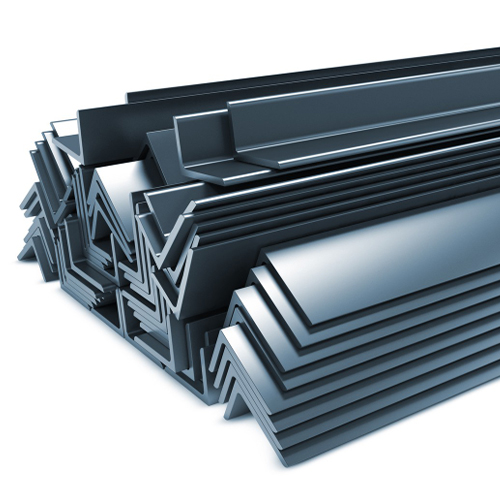

MS Angles
One of the most common structural components is the L-shaped section known as Angle. Two steel legs joined at a right angle produce an L-shape. Though the length of each section can vary, angled beams always make the right angle. Structural steel angles can be equal or unequal.
We supply steel angles with precise dimensional accuracy and our MS angles come with superior mechanical properties, and are extremely convenient to weld, drill and cut to suit the individual requirements of every construction. Being a popular MS angle supplier, our equal and unequal angles are highly versatile and can be used in a number of engineering applications such as reinforcement, transmission towers, bridges, sheds, etc. Their anti-corrosion property increases the life of the structures built by using them. We provide high material strength for exceptional support in work which makes it ideal for framing, bracing and structural support works. Our steel angles can withstand high loads and adhere to Indian Standards (IS:808 and IS:2062). We supply MS angles of various makes like SAIL, JSPL, RINL, Kamdhenu, Jai Bharat, etc. We are experienced in this domain, and with our expertise, we are offering a wide range of angles from sizes 15x15x3 up to 150x150x12.
| Sizes in mm | Weight in Kgs/Mtr | Weight in Kgs/Ft |
| 25 x 25 x 3 | 1.1 | 0.3 |
| 25 x 25 x 4.5 | 1.6 | 0.49 |
| 25 x 25 x 5 | 1.8 | 0.5 |
| 25 x 25 x 6 | 2.1 | 0.6 |
| 30 x 30 x 3 | 1.4 | 0.4 |
| 35 x 35 x 3 | 1.6 | 0.5 |
| 35 x 35 x 4 | 2.1 | 0.6 |
| 35 x 35 x 5 | 2.6 | 0.8 |
| 37 x 37 x 3 | 1.7 | 0.5 |
| 40 X 40 X 3 | 1.8 | 0.055 |
| 40 x 40 x 4 | 2.4 | 0.7 |
| 40 x 40 x 5 | 3 | 0.9 |
| 40 x 40 x 6 | 3.5 | 1.1 |
| 45 x 45 x 4 | 2.7 | 0.8 |
| 45 x 45 x 5 | 3.4 | 1 |
| 45 x 45 x 6 | 4 | 1.22 |
| 50 x 50 x 3 | 2.3 | 0.7 |
| 50 x 50 x 4 | 3 | 0.9 |
| 50 x 50 x 5 | 3.8 | 1.2 |
| 50 x 50 x 6 | 4.5 | 1.4 |
| 50 x 50 x 8 | 5.84 | 1.78 |
| 55 x 55 x 4 | 3.3 | 1 |
| 55 x 55 x 5 | 4.1 | 1.3 |
| 60 x 60 x 4 | 3.7 | 1.1 |
| 60 x 60 x 5 | 4.5 | 1.4 |
| 60 x 60 x 6 | 5.4 | 1.64 |
| 65 x 65 x 4 | 4 | 1.2 |
| 65 x 65 x 5 | 4.9 | 1.5 |
| 65 x 65 x 6 | 5.8 | 1.8 |
| 65 x 65 x 8 | 7.7 | 2.4 |
| 65 x 65 x 10 | 9.4 | 2.9 |
| 65 x 65 x 12 | 11.8 | 3.6 |
| 70 x 70 x 7 | 7.38 | 2.25 |
| 75 x 75 x 5 | 5.7 | 1.7 |
| 75 x 75 x 6 | 6.8 | 2.1 |
| 75 x 75 x 8 | 8.9 | 2.7 |
| 75 x 75 x 10 | 11 | 3.4 |
| 75 x 75 x 12 | 13.1 | 4 |
| 80 x 80 x 6 | 7.2 | 2.19 |
| 80 x 80 x 7 | 7.9 | 2.9 |
| 80 x 80 x 8 | 9.6 | 2.9 |
| 90 x 90 x 6 | 8.2 | 2.5 |
| 90 x 90 x 7 | 9.5 | 2.9 |
| 90 x 90 x 8 | 10.8 | 3.1 |
| 90 x 90 x 10 | 13.4 | 4.1 |
| 98 x 98 x 9.5 | 13.09 | 3.99 |
| 100 x 100 x 6 | 9.2 | 2.8 |
| 100 x 100 x7 | 10.7 | 3.3 |
| 100 x 100 x 8 | 12.1 | 3.7 |
| 100 x 100 x 10 | 14.9 | 4.5 |
| 100 x 100 x 12 | 17.7 | 5.4 |
| 110 x 110 x 8 | 13.4 | 4.08 |
| 110 x 110 x10 | 16.5 | 5.03 |
| 110 x 110 x 12 | 19.6 | 5.97 |
| 130 x 130 x 8 | 15.9 | 4.85 |
| 130 x 130 x 10 | 19.7 | 6.01 |
| 130 x 130 x 12 | 23.4 | 7.13 |
Available Brands: SAIL, TATA,JSPL, Kamdhenu, RINL, Jai Bharat

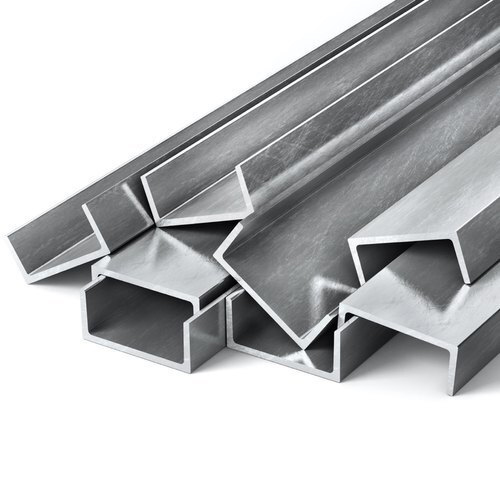

MS Channels
One of the most common structural components is the C-shaped section known as Channel. It is also known as a C Purlin, as it is commonly used to provide structural support for roofs and walls in pre-engineered metal buildings.
We supply steel channels with precise dimensional accuracy and our MS channels come with superior mechanical properties, and are extremely convenient to weld, drill and cut to suit the individual requirements of every construction. Mild steel channels are used widely in the fabrication and automotive industry for construction purposes. They are primarily used in the production of trucks, trailers, tippers, EOT cranes, and shipbuilding applications. We provide high material strength for exceptional support in work which makes it ideal for framing, bracing and structural support works. Our steel channels can withstand high loads and adhere to Indian Standards (IS:808 and IS:2062). Channels can be supplied in raw form or can be Painted or Galvanized. We supply MS channels of various makes like SAIL, JSPL, RINL, Kamdhenu, Jai Bharat, etc. Channels are available in various sizes and thickness starting from 75×40 up till 400×100.
| Sizes in mm. | Weight in Kgs/Mtr | Weight in Kgs/Ft |
| 75×40 Std | 7.14 | 2.1768 |
| 75×40 Med | 6.5 | 1.9817 |
| 75×40 L | 5.7 | 1.7378 |
| 75×40 XL | 4.92 | 1.5 |
| 100×50 Std | 9.56 | 2.9146 |
| 100×50 Med | 8.7 | 2.6524 |
| 100×50 L | 7.8 | 2.378 |
| 125×65 Std | 13.1 | 3.9939 |
| 150×75 Std | 16.8 | 5.122 |
| 175×75 Std | 19.6 | 5.9756 |
| 200×75 Std | 22.3 | 6.7988 |
| 250×80 Std | 30.6 | 9.3293 |
| 300×90 Std | 36.3 | 11.067 |
| 350×100 Std | 42.7 | 13.018 |
| 400×100 Std | 50.1 | 15.274 |
Available in Raw, Painted, or Galvanized form
Beams / Girders / Joists
Mild Steel Beam or simply Beam, is one of the main components in heavy structural works. Also known as Girder or Joist, it is broadly acknowledged for its great functionality. With years of development and innovation, Beams are available in a very wide range such as I-Beam, H-Beam, NPB, WPB, UB, etc., with each holding its respective application.
We are prominent suppliers of mild steel Beams and our beams are dimensionally accurate and rugged in construction. With massive load bearing ability, our beams are considered to be best for construction of high-rise buildings, bridges and all sorts of structures. The beam shows excellent deformation resistance with sturdy structure and high durability. It is said to have superior tensile strength with ability to absorb ample amount of vibrations. Beams have wide flanges that help in preventing buckling and provide exceptional support to structures. These sections are cost-effective, flexible and are superior in terms of strength, efficiency, higher axial and bending load-bearing capacities. Produced as per various Indian & international standards, these parallel flange beams enable complex fabrications in high volumes due to inherent functional advantages. We supply MS Beams of various makes like SAIL, JSPL, RINL, Jai Bharat, KL Concast etc. We offer a wide range of Beams starting from MB 100 up to MB 600.
Sizes in mm | Weight in Kgs/Mtr | Weight in Kgs/Ft |
| 100 x 50 | 7.979 | 2.432 |
| 125 x 70 | 13.199 | 4.023 |
| 150 x 75 | 14.997 | 4.571 |
| 175 x 85 | 19.499 | 5.943 |
| 200 x 100 | 25.897 | 7.893 |
| 250 x 125 | 38.099 | 11.612 |
| 300 x 140 | 48.5 | 14.782 |
| 350 x 140 | 52.906 | 16.125 |
| 400 x 140 | 62.601 | 19.08 |
| 450 x 150 | 22.28 | 22.28 |
| 500 x 180 | 87.7 | 26.73 |
| 600 x 210 | 122.6 | 37.37 |
High load-bearing capacity, anti-buckling flanges
Supplied as per Indian and International Standards

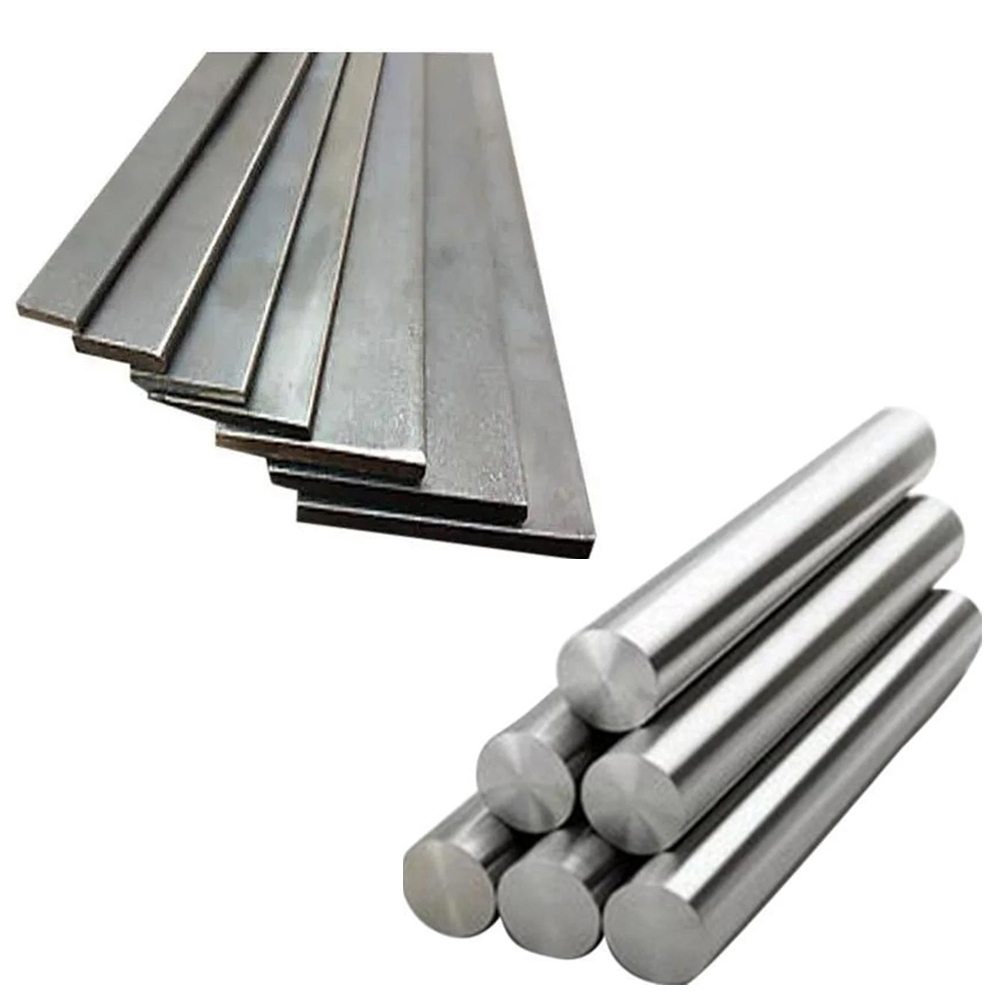

MS Flat & Round Bars
Mild steel bars, also known as MS bars, are manufactured in flat and round sections. These are extensively used by manufacturers for the production of racks, clamps, framework, automobile and auto-ancillaries, truck trailers, tippers, railways, bus bodies, elevators, and escalators. According to experts, MS steel bars not only provide a superior framework to the products and also reduce the overall manufacturing cost.
We are leading suppliers of mild steel flat and round bars with an extensive range of sizes and grades. Our flat bars are rolled at low temperature which imparts higher strength and rigidity to structures. The tensile strength, reliability, and durability of the MS steel bars helps to meet every requirement of the manufacturer in terms of quality and specifications. Our bars are rugged in construction, accurate in dimensions and adhere to various standards as per industry norms. We also supply low carbon grade material which are easier to mould and fabricate. We are also supplying EN series bars and other alloy steels as per requirement of our customer. The flat bars are available in width ranging from 15mm to 500mm and round bars are available in dia 6mm up to 150mm

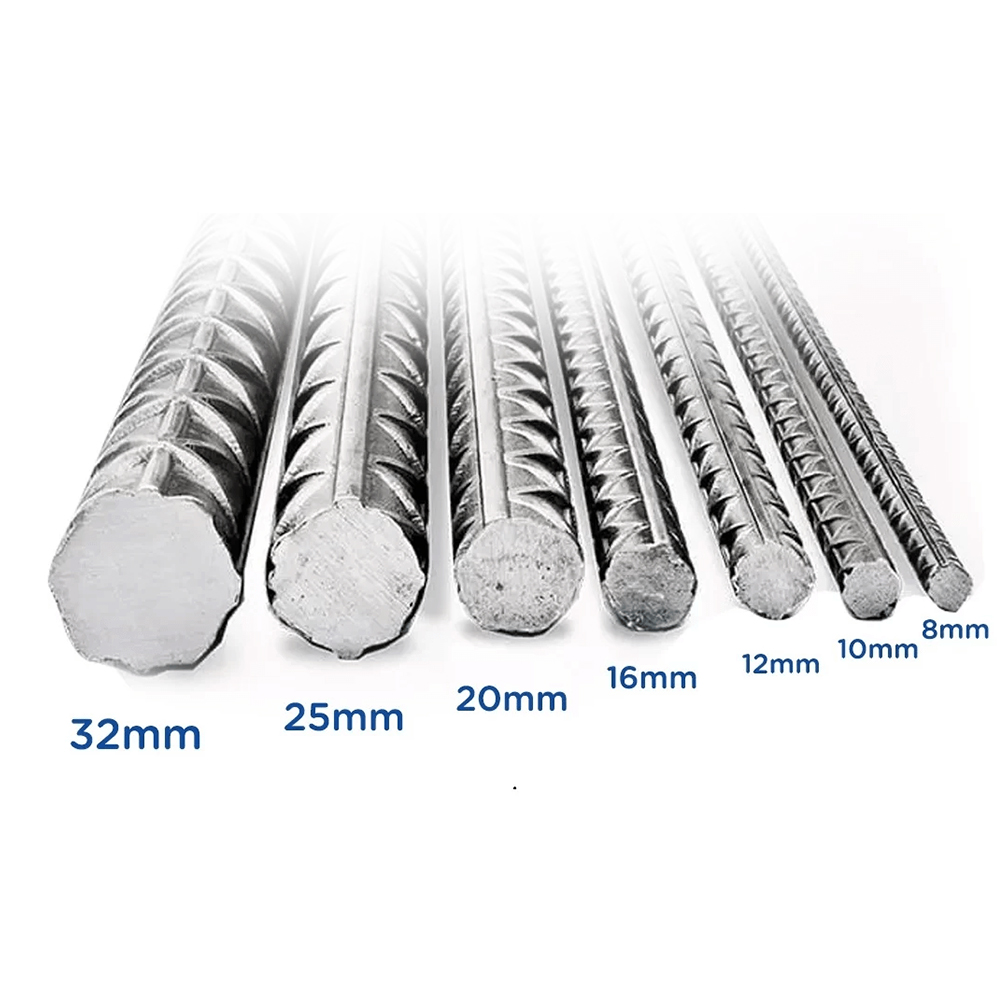

TMT Bars
TMT bars or Thermo-Mechanically Treated bars are high-strength reinforcement bars having a tough outer core and a soft inner core. TMT bars are one of the most important construction materials that are widely used for building earthquake-resistant structures. The ribbed TMT bars provide better reinforcement to any concrete structure, thus, minimizing damages during any seismic activities. These bars are being used in the construction of buildings, bridges, various types of plants, concrete structural base etc.
Hi-Tech Engineers is one of the pioneer TMT Bars supplier across North India. Our TMT bars have greater tensile strength and higher elongation. This improves the bend/re-bend properties of the TMT bars, thus making it safe from natural calamities such as an earthquake. We are supplying various grades of TMT bars like Fe 450, Fe 500, Fe 500D, Fe 550, etc. We supply bars of prominent manufacturers like SAIL, JSW, JSPL, Jyoti TMT, Fortune TMT, etc. We have wide variety of TMT bars ranging from dia 6mm up to 40mm.
Brands: SAIL, JSW, Jyoti TMT, Fortune TMT

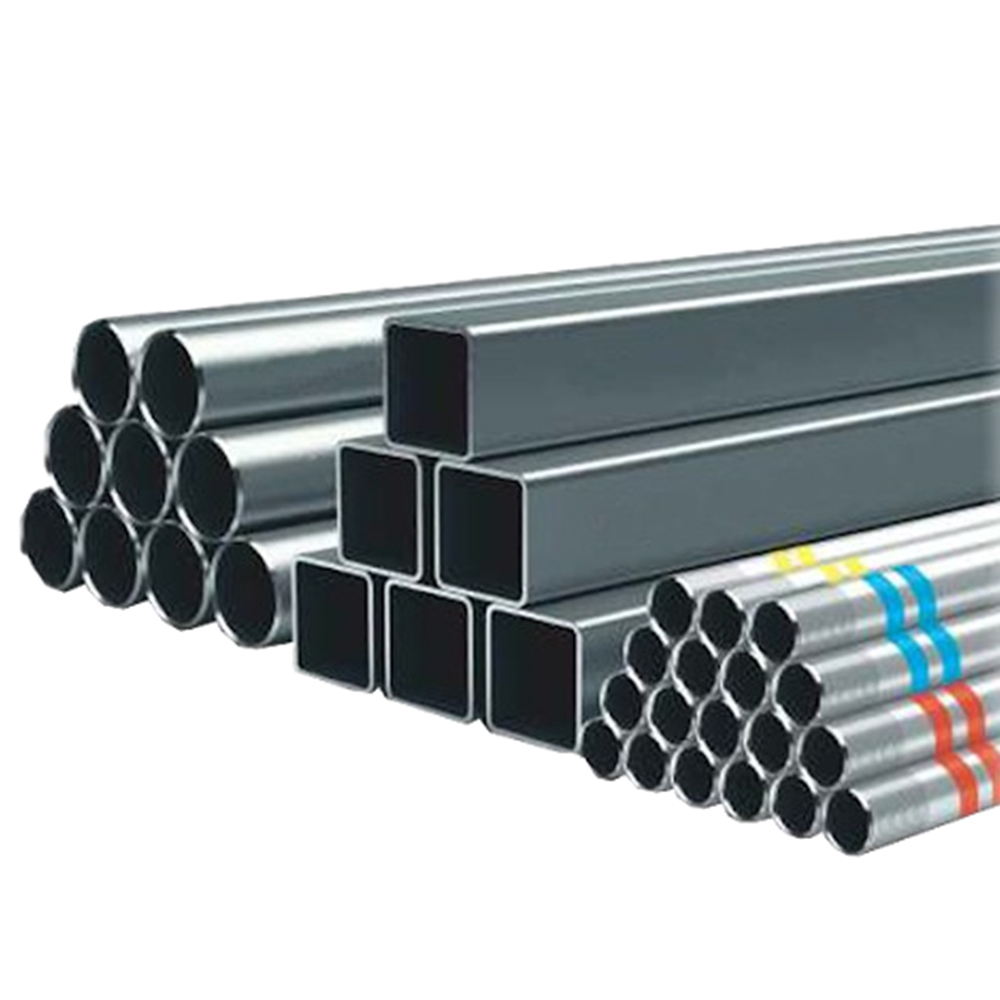

Pipes / Hollow Sections
Hollow steel sections or simply pipes or tubes can be circular, square (SHS), or rectangular (RHS) sections, although other shapes such as elliptical are also available. There are two basic methods of producing hollow sections – the seamless process in which a hole is pierced through a hot solid bar to form the bore and then the bar is rolled to form the round tube, and the welded process in which a steel plate or strip is formed into a cylindrical shape and the edges welded together. MS pipes hold a significant role ranging from basic domestic needs to high end construction works. They can be used for water and sewage purpose, frameworks, railings and walkways, support columns and beams, furniture and numerous other applications depending upon the requirement of end user.
We are leading suppliers of Pipes across North India with an extensive range which caters to various industries. We are supplying material to various Power Plants, Refineries, Cement Industries, Fertilizers, etc. We are supplying seamless as well as ERW Pipes which adhere to various standards like ASTM A 106, A 53, IS 1239, IS 3589, IS 1161, etc. With a wide range of Mild Steel, Stainless Steel and Carbon Steel pipes, Hi-Tech Engineers is a prominent name in the pipe industry. We are supplying pipes of various reputed makes like APL Apollo, Jindal Pipes, Surya Roshni, Avon, Jindal Stainless, Swastik, etc.
Seamless & ERW Pipes
Standards: ASTM A106, A53, IS 1239, IS 3589, IS 1161
Brands: APL Apollo, Jindal Pipes, Surya, Avon, Swastik
MS Plates / Sheets
Mild steel plates or simply plates or sheets are the primary component of any structural or fabrication work. The most common way that steel plates are manufactured is through hot rolling, where steel slabs are heated until they are more malleable. The steel is then run through a series of rollers that flatten and thin them out to the desired thickness. MS Plates hold a very wide range of applications and are used for various construction works, fabrication jobs, automotive industry, roads and bridges, and various other domestic and industrial works.
We are one of the leading suppliers of MS Plates and have an extensive range with varied thickness. These plates and sheets are of premium quality in terms of dimensional adherence and internal soundness owing to its clean raw material, sound steel refining facilities and an efficient rolling mill. The versatility of MS plates lies in their ability to be easily cut, molded and welded in various shapes and sections as per the requirement of the customer. Due to their chemically and mechanically controlled properties, MS plates provide immense stability to the structure ensuring longevity and safety to the structure. We are supplying plates of various grades like Mild Steel (IS 2062), High Tensile Steel Plates (SAILMA, SAILHARD), Boiler Quality Plates (SA 387, SA 516, SA 537, IS 2002), etc. which are used for varied applications. We supply MS Plates of various makes like SAIL, JSPL, AMNS, etc. We can supply plates in coils, standard sizes and cut to size as per the requirement of customer.
Grades: IS 2062, SAILMA, SAILHARD, SA 387, SA 516, IS 2002
Thickness: Custom available
Brands: SAIL, JSPL, AMNS

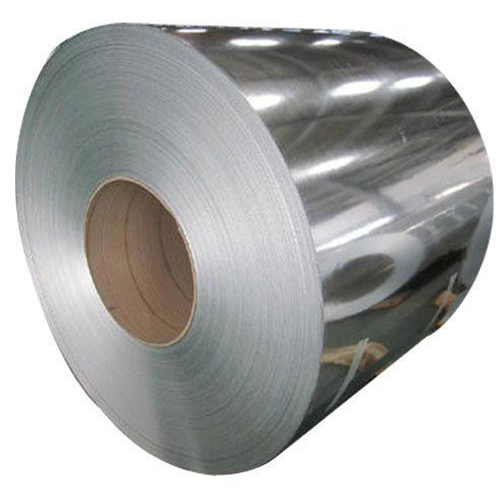

GP/GI Sheets
GP and GI sheets are both types of galvanized steel sheets, commonly used in construction and other applications. ”GP” stands for Galvanized Plain, while “GI” stands for Galvanized Iron. Both are steel sheets coated with zinc to prevent rust and corrosion, offering durability and protection against the elements
Hi-Tech Engineers is the house of steel solutions to fulfil your Galvanized Steel requirements under one roof. The fame and brand value of Hi-Tech Engineers in the market are earned with our consistent and defect-free Galvanised Sheet offerings to our customers. The GI Sheet is sourced from the industry’s most valued and reputed manufacturers.
We are the first and foremost choice of the engineers and people to make the best business transactions. our Galvanized Steel is highly welcomed and preferred for its unparalleled quality. We assist our customers to generate more ROI with our offerings and the best deal on Galvanized Steel Coils.
Longer & Better Durability | Higher Tensile Strength | Better Elongation Value
Width (900, 1000, 1100, 1250, 1500 mm)
0.30 mm to 3.0 mm
Brands: SAIL, JSPL, AMNS

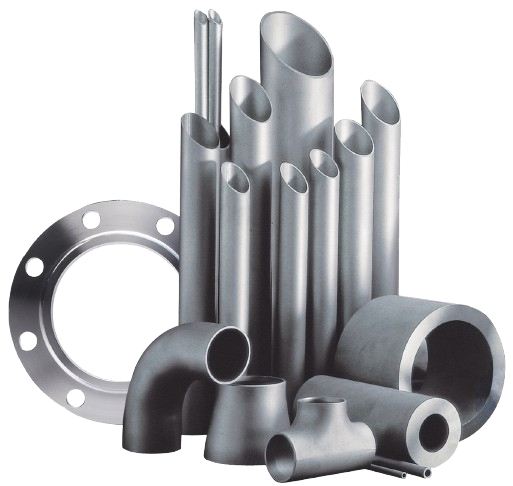

Stainless Steel Sections
Stainless steel, also known as inox, corrosion-resistant steel (CRES), or Rust less steel, is an alloy of iron that is resistant to rusting and corrosion. It contains at least 10.5% chromium and usually nickel, and may also contain other elements, such as carbon, to obtain the desired properties. The alloy’s properties, such as lustre and resistance to corrosion, are useful in many applications. Stainless steel can be rolled into sheets, plates, bars, pipes, wire, and tubing.
Hi-Tech Engineers have an extensive range of stainless sections like plates, sheets, round bars, flat bars, tubes, pipes, etc. These can be used in cookware, cutlery, surgical instruments, major appliances, vehicles, construction material in large buildings, industrial equipment (e.g., in paper mills, chemical plants, water treatment), and storage tanks and tankers for chemicals and food products. Stainless steel is available in wide variety of grades out of which the most commonly used grades are 202, 304, 316, etc. Each grade has its own application depending upon the nature of work, atmospheric conditions and the strength required. We supply stainless sections of various makes like JSL, Columbus, Chromeni Steels, etc.
Products: Plates, Sheets, Round Bars, Flats, Pipes, Tubes
Grades: SS 202, 304, 316, etc.
✅ Brands: JSL, Chromeni Steels, Columbus
Material Sourcing
We supply products from top manufacturers including:
SAIL, JSPL, RINL, Kamdhenu, TATA, Jindal, APL Apollo, Surya, Jyoti TMT, Fortune TMT, and many more.
All materials are tested and certified as per BIS/IS/ASTM standards to meet project specifications.
